How OLED Displays Work: Organic Electroluminescence, SSD1306 Driver & Arduino Guide

Every pixel in an OLED display is its own light source — no backlight, no LCD liquid crystals, just organic molecules excited by electricity emitting pure light. Discover the physics of electroluminescence, how the SSD1306 driver chip controls 8,192 individual pixels over I2C, and how to add a stunning display to your Arduino project.

AY
Updated June 1, 2026

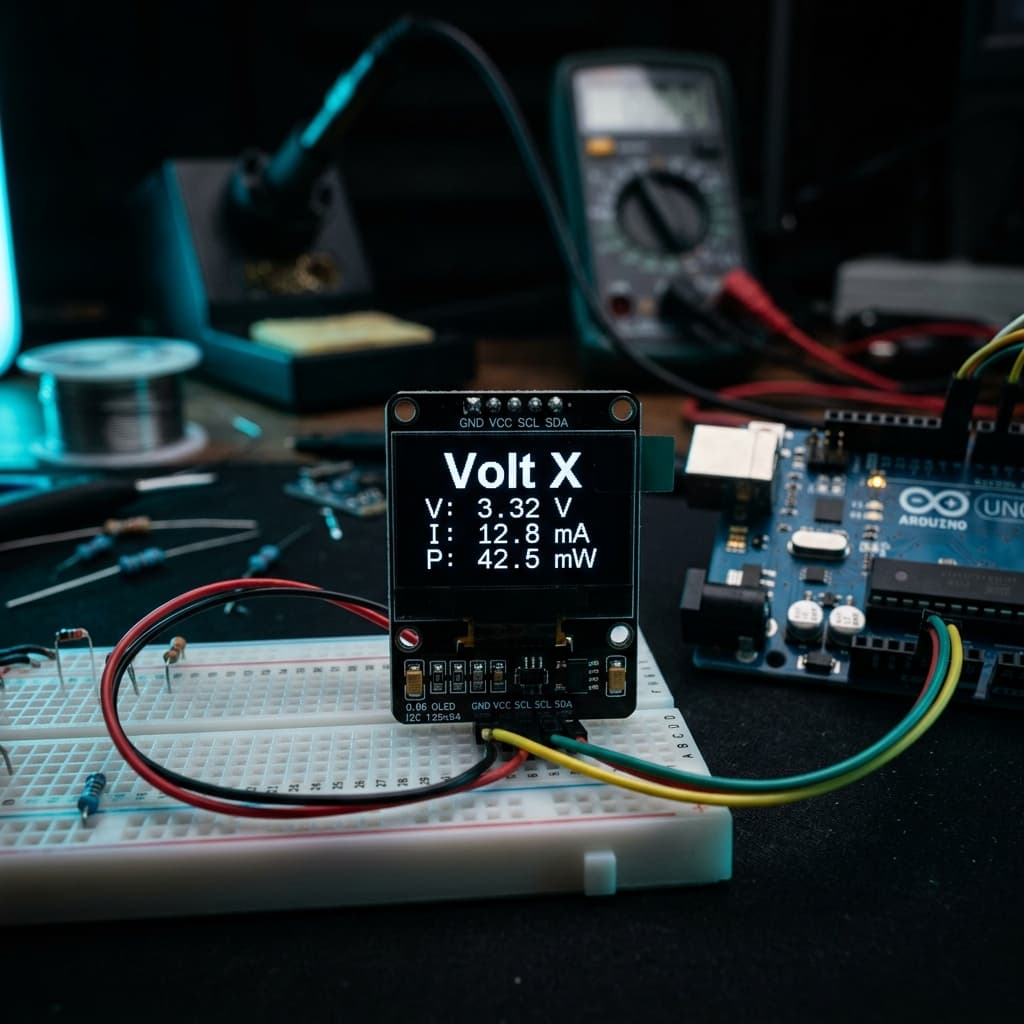

0.96 inch SSD1306 OLED display on a breadboard connected to Arduino showing white text on a pitch-black background
Technology

Organic Electroluminescence (no backlight needed)

Resolution (Common)

128×64 pixels (0.96"), 128×32 pixels (0.91")

Interface

I2C (address 0x3C/0x3D) or SPI (faster)

Controller IC

SSD1306 (most common), SH1106, SSD1309

Operating Voltage

3.3V or 5V (most modules have onboard regulator)

Power Consumption

~20mA typical, 0mA for black pixels

How OLED Pixels Emit Light

Direct Definition: An OLED pixel emits light through electroluminescence — injecting electrons from the cathode and holes from the anode into an organic emissive layer, where they recombine and release photons whose color depends on the organic compound used.

An OLED pixel is built as a multi-layer sandwich between two electrodes:

  1. Anode (ITO — Indium Tin Oxide): Transparent electrode that injects positive charge carriers (holes).
  2. Hole Transport Layer (HTL): Organic material that moves holes toward the emissive layer.
  3. Emissive Layer (EML): The organic compound that emits light when electrons and holes recombine (Alq₃ for green, fluorescent dyes for red/blue).
  4. Electron Transport Layer (ETL): Moves electrons from cathode toward the EML.
  5. Cathode (LiF/Al): Metal electrode injecting electrons. Light exits through the transparent anode (bottom emission) or through the top (top emission).

OLED vs LCD: Technical Comparison

PropertyOLEDLCD (IPS)
Black LevelTrue black (pixel off)Backlight bleed
Contrast RatioInfinite (∞:1)1000:1 – 5000:1
Viewing Angle>160° minimal shift>170° (IPS)
Response Time<0.1ms1–5ms
Power (dark content)Very lowAlways-on backlight
Lifespan60,000–100,000 hrs>100,000 hrs
Burn-in RiskYes (static content)No

Arduino + SSD1306 OLED: Complete Code Example

Wire the 4-pin OLED module: VCC to 5V, GND to GND, SDA to A4, SCL to A5 (Arduino Uno I2C pins):

// Arduino SSD1306 OLED display with Adafruit library
// Install: Adafruit SSD1306, Adafruit GFX Library

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH  128
#define SCREEN_HEIGHT 64
#define OLED_RESET    -1  // No reset pin (share Arduino reset)
#define SCREEN_ADDRESS 0x3C

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT,
                          &Wire, OLED_RESET);

void setup() {
  Serial.begin(9600);

  if (!display.begin(SSD1306_SWITCHCAPVCC, SCREEN_ADDRESS)) {
    Serial.println("SSD1306 OLED not found!");
    while (true); // Halt
  }

  display.clearDisplay();

  // Draw text
  display.setTextSize(2);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println("Volt X");

  display.setTextSize(1);
  display.setCursor(0, 24);
  display.println("SSD1306 OLED Ready");
  display.println("128x64 pixels");

  // Draw a rectangle
  display.drawRect(0, 48, 128, 16, SSD1306_WHITE);

  display.display(); // Push buffer to screen
}

void loop() {
  // Update display with sensor data
  display.clearDisplay();
  display.setTextSize(1);
  display.setCursor(0, 0);
  display.print("Temp: ");
  display.print(25.3, 1);
  display.println(" C");
  display.display();
  delay(500);
}

How the SSD1306 Controller Works

The SSD1306 is a dedicated OLED controller IC that handles all the complexity of driving 8,192 individual pixels:

GDDRAM Buffer

1KB internal Graphic Display Data RAM stores the full 128×64 pixel frame — one bit per pixel.

Charge Pump

Built-in charge pump generates the ~12V needed to drive OLED pixels from a 3.3V or 5V supply.

Multiplexing

Scans 64 rows using a voltage selector, refreshing at ~60Hz using page addressing.

I2C Interface

Supports I2C at up to 400kHz. Address selectable between 0x3C and 0x3D via SA0 pin.

Frequently Asked Questions

How does an OLED display work?

Each OLED pixel emits its own light through electroluminescence — organic compounds between electrodes release photons when electrons and holes recombine. No backlight is needed; black pixels simply turn off.

What is the SSD1306 and how does it control an OLED?

SSD1306 is a dedicated OLED controller IC with 1KB frame buffer RAM, built-in charge pump (generates 12V from 3.3V), and I2C/SPI interface. The MCU writes pixel data to the SSD1306 over I2C; the chip handles the display refresh continuously.

What is the difference between AMOLED and PMOLED?

PMOLED scans row-by-row (simple, for small displays <3"). AMOLED adds a TFT transistor per pixel holding charge independently (enables large smartphone and TV displays with better brightness uniformity).

What are the advantages of OLED over LCD?

True infinite contrast (black pixels = off), wider viewing angles, microsecond response time, thinner design, lower power for dark content. Disadvantages: burn-in risk, organic material degradation over time, higher cost for large panels.

What I2C address does the SSD1306 OLED use?

Default I2C address is 0x3C. Some modules support 0x3D via solder jumper, allowing two OLEDs on one bus. Use an I2C scanner sketch to confirm your module's address.
