How LoRa & LoRaWAN Work: Long Range IoT Communication Explained

Chirp Spread Spectrum: Why LoRa Goes So Far

Traditional radio transmits on a fixed frequency — a narrow spike in the spectrum easily drowned out by interference. LoRa's Chirp Spread Spectrum (CSS) instead sweeps the carrier frequency across the entire bandwidth (typically 125 kHz) in a linear chirp waveform. Each bit is encoded as a different phase of this chirp.

Because the signal energy is spread across 125 kHz rather than concentrated in a narrow band, the receiver can recover signals even when they are 20dB below the noise floor — an extraordinary property that enables the remarkable 10–15km range on tiny milliwatt transmit powers.

Spreading Factors (SF7–SF12): Range vs Speed Trade-off

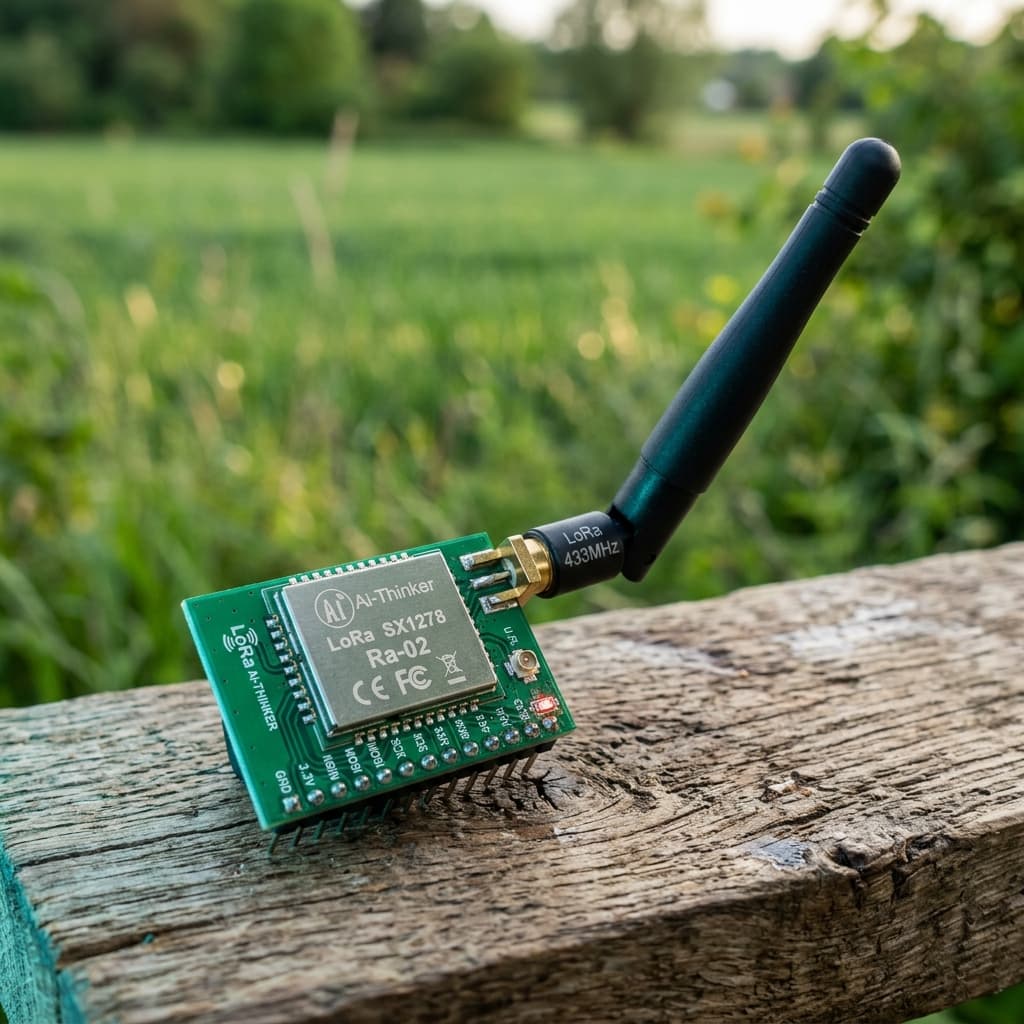

Arduino LoRa Transmitter with SX1278 (Ra-02)

// LoRa Point-to-Point sender using Ra-02 (SX1276/78) module
// Library: Arduino-LoRa by sandeepmistry

#include <SPI.h>
#include <LoRa.h>

// Ra-02 SPI connections (SX1278):
// SCK  → D13, MISO → D12, MOSI → D11
// NSS/CS → D10, RESET → D9, DIO0 → D2

void setup() {
  Serial.begin(9600);
  LoRa.setPins(10, 9, 2);  // CS, RESET, DIO0

  if (!LoRa.begin(433E6)) { // 433 MHz band
    Serial.println("LoRa init failed!");
    while (1);
  }

  LoRa.setSpreadingFactor(9);      // SF9 = balance of range & speed
  LoRa.setSignalBandwidth(125E3);  // 125 kHz bandwidth
  LoRa.setCodingRate4(5);          // 4/5 coding rate
  LoRa.setTxPower(17);             // 17 dBm (max for Ra-02)
  Serial.println("LoRa transmitter ready");
}

void loop() {
  float temperature = 25.3;
  int humidity = 68;

  LoRa.beginPacket();
  LoRa.print("T:");
  LoRa.print(temperature, 1);
  LoRa.print(",H:");
  LoRa.print(humidity);
  LoRa.endPacket(); // Non-blocking transmit

  Serial.println("Packet sent");
  delay(10000); // 10-second interval (duty cycle compliance)
}

LoRaWAN Network Architecture

LoRaWAN creates a 4-layer star-of-stars network:

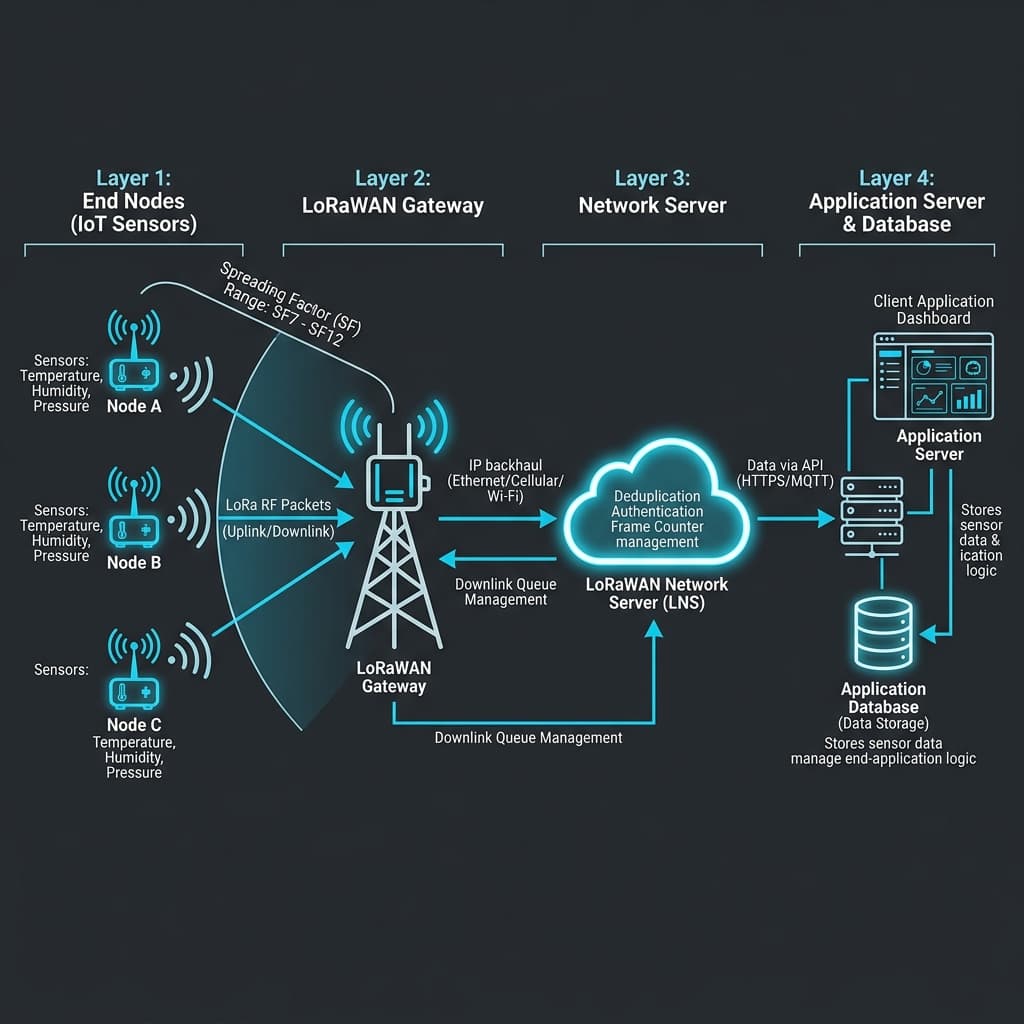

Fig 1: LoRaWAN Network Topology — Star-of-stars network from End Devices to Gateways, Network Server, and Application Servers
