⚙️ Stepper Motor Precision Driver

Achieve exact angular positioning with a 28BYJ-48 stepper motor — 200 steps equals one perfect revolution every time.

📋 Overview

Stepper motors divide a full 360° rotation into hundreds of discrete 'steps.' Unlike DC motors, they move to exact positions without any position feedback. They are the backbone of 3D printers, CNC machines, and robotic arms.

Technical Insight: The 28BYJ-48 is a 5-phase unipolar stepper motor that completes one revolution in 512 steps (in full-step mode) or 2048 steps (in half-step mode). The ULN2003 driver chip contains 7 Darlington transistor pairs, each capable of sinking 500mA — exactly what the motor coils need.

In simple terms: By sending electrical pulses to the four coils in a specific sequence (1000 → 1100 → 0100 → 0110...), we make the rotor latch to each magnetic pole in turn, giving us precise steps of about 5.625° each.

What you'll learn: Stepper motor coil sequencing, the Arduino Stepper.h library, RPM control, direction reversal, and understanding gear ratio reduction.

Estimated time: 35-50 minutes. Difficulty: ⭐⭐ Easy. Perfect for robotics and CNC enthusiasts.

🧩 Components Needed

Component	Specification	Qty	Notes
Arduino Uno R3	5V	1
28BYJ-48 Stepper Motor	5V, 4-phase unipolar	1	Common blue stepper
ULN2003 Driver Board	5V, 4-channel	1	Usually comes bundled with motor
Jumper Wires	Female-to-Male	6
USB Cable	Type A to B	1	Powers motor and Arduino

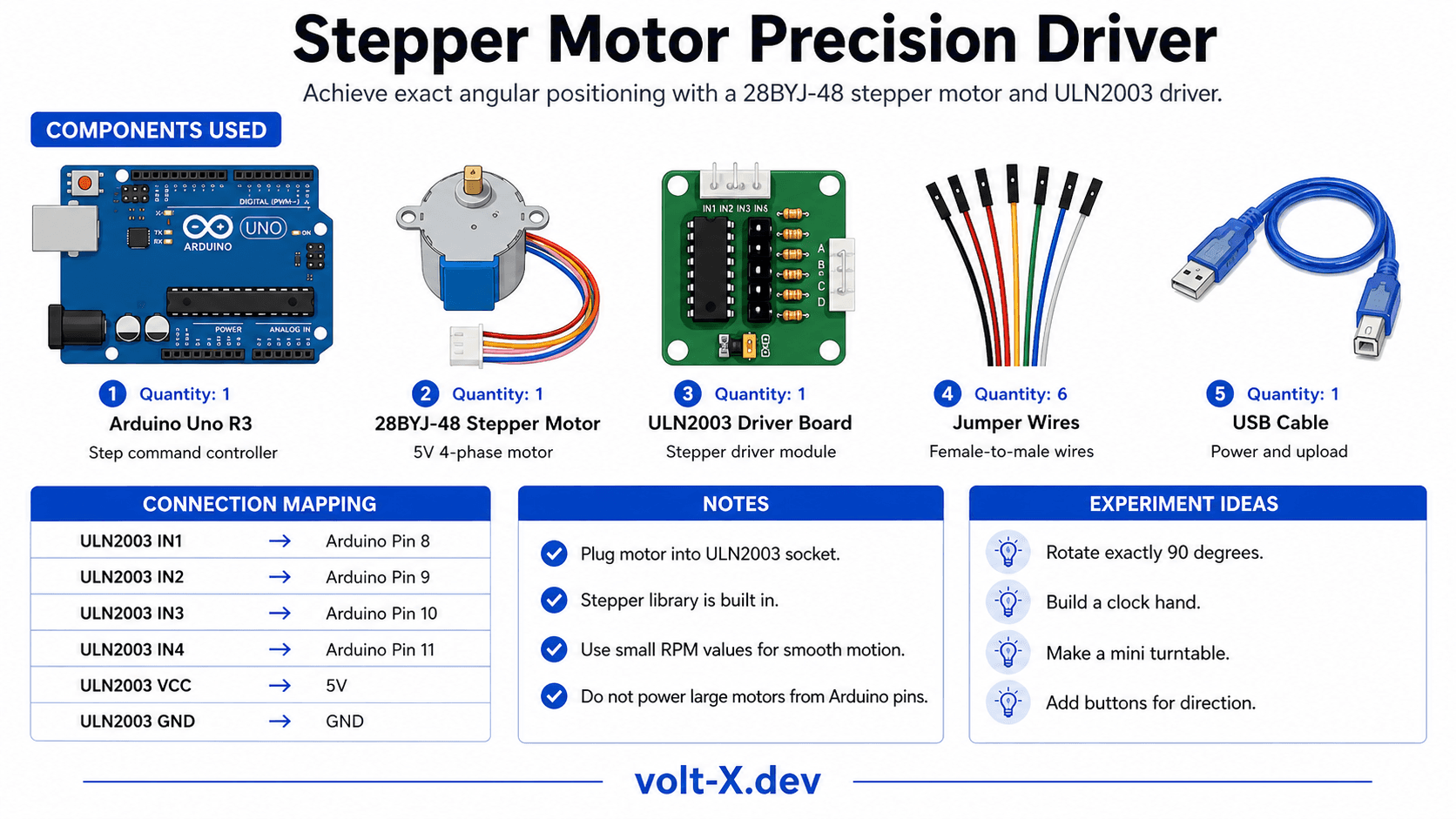

🗺️ Component Pin Mapping

📖 Step-by-Step Tutorial

Connect the Motor

Plug the motor connector into the ULN2003 board socket. The blue connector fits only one way.

Wire to Arduino

ULN2003 IN1 → Arduino pin 8, IN2 → pin 9, IN3 → pin 10, IN4 → pin 11. Connect VCC → 5V, GND → GND.

Install Library

The Stepper.h library is built into Arduino IDE. No additional installation needed.

Upload and Observe

Upload the code. The motor will turn exactly 1 full revolution clockwise, pause, then 1 revolution counter-clockwise.

Customize Steps

Change STEPS_PER_REV and mySpeed to experiment with different angles and RPM settings.

💡

The 28BYJ-48 has an internal gear reduction of 64:1, so it actually takes 2048 steps (not 32) for one output shaft revolution. Use 2048 as your steps-per-revolution for accurate positioning in real projects.

💻 Arduino Code

stepper_motor_driver.ino

INO

// Stepper Motor Driver — Volt X
// 28BYJ-48 + ULN2003, pins 8-11

#include <Stepper.h>

const int STEPS_PER_REV = 2048; // Full steps per output revolution
const int mySpeed = 10;          // RPM (1–15 works well for 28BYJ-48)

// Create stepper object (note pin order for 28BYJ-48!)
Stepper myStepper(STEPS_PER_REV, 8, 10, 9, 11);

void setup() {
  myStepper.setSpeed(mySpeed);
  Serial.begin(9600);
  Serial.println("Stepper Motor Driver — Volt X");
}

void loop() {
  Serial.println("Clockwise — 1 revolution");
  myStepper.step(STEPS_PER_REV);   // Forward
  delay(1000);

  Serial.println("Counter-clockwise — 1 revolution");
  myStepper.step(-STEPS_PER_REV);  // Reverse
  delay(1000);
