What components do I need for the Laser Security Tripwire project?

For the Laser Security Tripwire project, you need: 1x Arduino Uno R3 (5V), 1x Laser Diode (5V 5mW Red), 1x LDR (Photoresistor), 1x Piezo Buzzer (Alarm), 1x Resistor (10kOhm).

How do I build an Laser Security Tripwire with Arduino?

Create an invisible security beam that triggers an alarm when the laser light is blocked. Follow these 4 steps: Step 1: Set Up Laser. Step 2: Wire LDR. Step 3: Wire Buzzer. Step 4: Calibrate.

How long does the Laser Security Tripwire project take?

The Laser Security Tripwire Arduino project typically takes 30–60 minutes to complete, including wiring and uploading the code. It is rated as a Basic-level project, suitable for beginners with no prior electronics experience.

Is the Laser Security Tripwire Arduino code free to use?

Yes. All Arduino code on Volt X, including the Laser Security Tripwire sketch, is completely free to use, copy, and modify for personal or educational projects.

← Back to Basic Projects

Basic . Project #16

⚡ Laser Security Tripwire

Create an invisible security beam that triggers an alarm when the laser light is blocked.

📋 Overview

By pointing a laser at an LDR (Photoresistor), we create a high-voltage signal. If anyone walks through the beam, the light is blocked, the LDR resistance jumps, and the alarm triggers.

What you'll learn: Optical sensing, threshold calibration, and security logic.

Estimated time: 30-45 minutes. Difficulty: ⭐⭐ Easy.

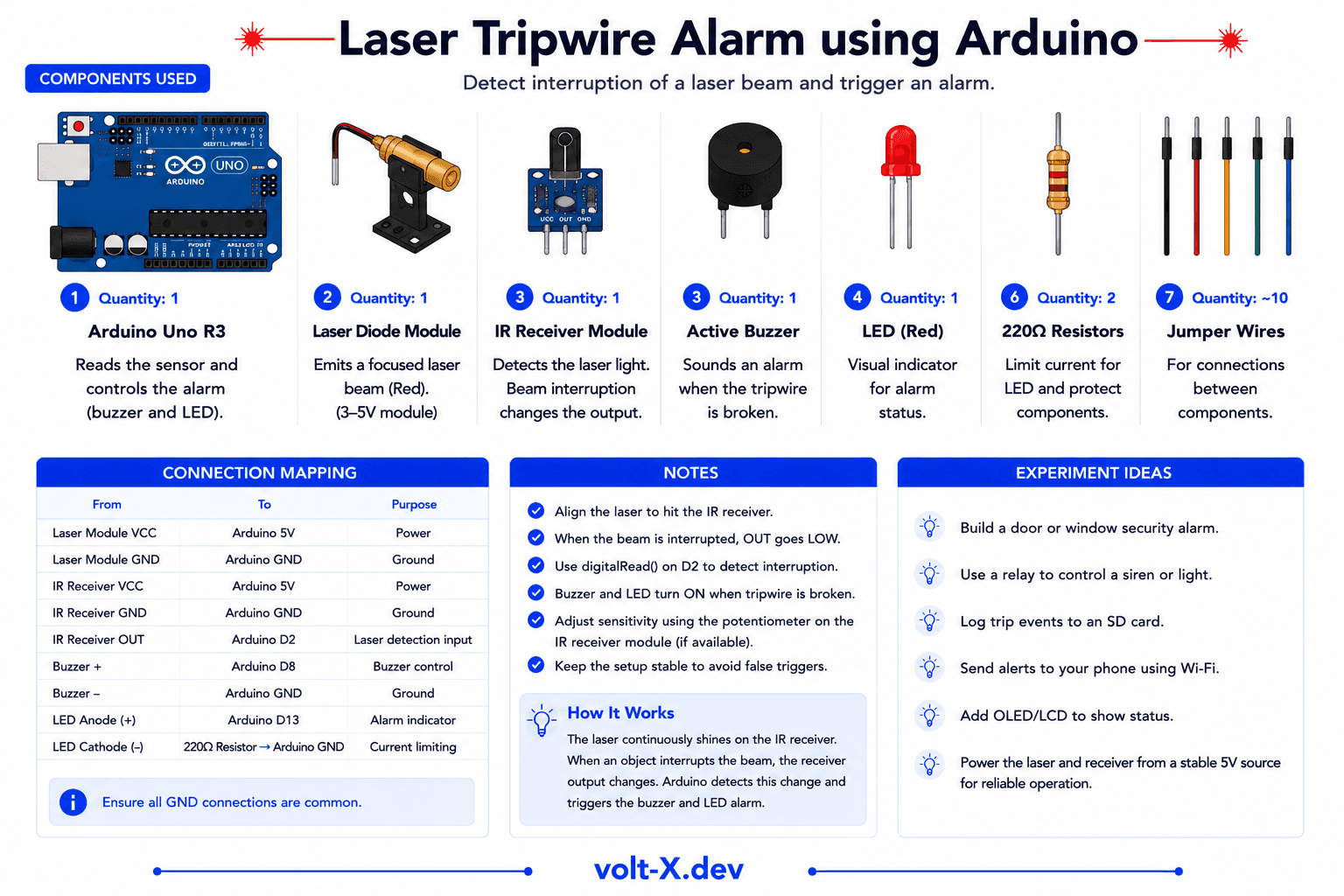

🧩 Components Needed

Component	Specification	Qty	Notes
Arduino Uno R3	5V	1
Laser Diode	5V 5mW Red	1	KY-008 module
LDR	Photoresistor	1
Piezo Buzzer	Alarm	1
Resistor	10kOhm	1	For voltage divider

📖 Step-by-Step Tutorial

Set Up Laser

Connect laser to 5V and GND. Aim it at the LDR from a distance.

Wire LDR

Create a voltage divider with 10kOhm resistor and connect to A0.

Wire Buzzer

Connect buzzer to pin 8.

Calibrate

Check Serial Monitor. Note the value when laser is hitting LDR vs when it is blocked. Set threshold accordingly.

💡

Use a small tube (like a straw) over the LDR to block ambient light. This makes your tripwire much more reliable in bright rooms.

💻 Arduino Code

laser_tripwire.ino

INO

// Laser Tripwire : Volt X
const int ldr = A0;
const int buzzer = 8;
int threshold = 800; // Adjust based on Serial Monitor

void setup() {
  pinMode(buzzer, OUTPUT);
  Serial.begin(9600);
}

void loop() {
  int val = analogRead(ldr);
  if (val < threshold) { // Beam broken
    tone(buzzer, 2000, 500);
    delay(500);
  } else {
    noTone(buzzer);
  }
}
